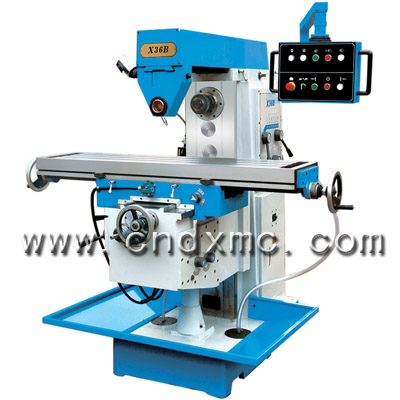

品牌:X36B
型号:X36B
规格:X36B
起订:1台
供应:1台
发货:3天内
|
主要技术参数 |
Specifications |
X36b |
||
|
铣削立轴内锥孔 |
Milling vertical shaft inner cone hole |
ISO50 |
||
|
主轴中心至铣床导轨距离（mm） |
Seeks the axle the main axle center to the milling machine to stagger |
405 |
||
|
插削最大行程（mm） |
Slotting maximum traveling range |
105 |
||
|
插当最大宽度 |
Inserts works as extreme breadth |
16 |
||
|
插削冲程次数（次/分钟） |
Slotting stroke number of times (/minute) |
≤80 |
||
|
冲程次数及变换级数 |
Stroke number of times and transformation progression |
与铣床卧轴转速及变速级数相同 |
||
|
铣床卧轴转向 |
The milling machine feudal official axis changes |
正向旋转 |
||
|
刀架回转角度（°） |
Tool rest rotation angle (°) |
±90 |
||
|
插刀刀杆中心至铣床导轨距离 |
Slotting tool cutter bar center to milling machine guide rail distance |
525 |
||
|
安装尺寸 |
与铣床主轴连接锥度 |
The mounting dimensions |
With milling machine main axle joint taper
|
ISO50 |
|
铣订垂直导轨角度 |
The mill subscribes the vertical guide rail angle
|
55°燕尾导轨、矩形导轨 |
||
|
铣床垂直导轨宽度 |
Milling machine vertical guide rail width
|
260、280、300、320、360 |
||
|
卧轴中心高度 |
Lies the axis center altitude |
0-480 |
||
|
工作台尺寸 |
Table size |
360*1500 |
||
|
工作台行程 |
Table travel |
900*250 |
||
|
外型尺寸 |
Overall dimensions |
2300*2000*2000 |
||
|
主电机 |
Main electrical machinery |
4KW |
||
|
进给电机 |
Carries on the electrical machinery |
1．5KW |
||
|
走刀速度 |
Cutting feed speed |
30、55、100 |
||
|
190、350、630 |
||||
|
2000 |
||||
|
主轴转速 |
Spindle speed |
60-1800 |
||
|
卧轴孔 |
Lies the axle hole |
ISO：50 |
||
