品牌:微展
型号:J00A-WP3I62110
起订:1台
发货:3天内
发送询价

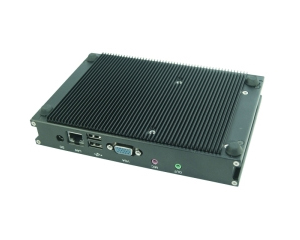

多媒体高清播放盒采用最新英特尔®NM10芯片组 + Cedar view™ N2800 CPU, 带集成显卡，带HDMI、VGA、COM、LAN、SD、CF、USB、Audio接口，支持同步及异步双显输出，支持高清播放。BOX机器性能高，无风扇，又小巧，主要应用在多媒体信息平台，网络广告机，数字标牌，广告一体机，金融信息发布系统，地铁广告机，网络监控系统等等。
|
System
|
|
|
Processor
|
Intel ® Cedar view™ N2800,2C/4T, 1.86GHz, 1MB
|
|
Chipset
|
Intel® NM10,
|
|
GPU
|
SGX545 (integrated, support 1080P)
|
|
Memory
|
2GB SO-DIMM DDR3 1066 MHz memory
|
|
Storage
|
|
|
Serial ATA
|
2.5〞5400rpm 320G
|
|
I/O Interface
|
|
|
USB
|
4 x USB2.0
|
|
LED
|
1 x Power button with LED(red) / 1 x HDD/Card LED / 1 x Reset LED
|
|
Audio
|
1 x Mic-in / 1 x Line-out
|
|
Serial Port
|
1 x COM (RS232)
|
|
Cardreader
|
2 x SD, 1 x CF
|
|
SIM
|
1 x SIM Slot
|
|
DC Jack
|
1 x DC JACK
|
|
Display
|
|
|
VGA
|
1 x VGA
|
|
HDMI
|
1 x HDMI
|
|
Dual display
|
VGA+HDMI
|
|
Network Device
|
|
|
Local Lan
|
1x10M/100M/1000M LAN，RJ45 connector
|
|
WIFI
|
1 x WIFI Module support 802.11b/g/n （Mini PCIE full card）
|
|
Mechanical and Environmental
|
|
|
Dimensions
|
183mm (L) x 123mm (W) x 30mm (H)
|
|
Reliability
|
MTBF≥50000h; MTTR≤0.5h
|
|
Operating Temperature
|
0℃~40℃
|
|
Storage Temperature
|
-20℃~70℃
|
|
Operating Humidity
|
5% ~ 90% (non-condensing)
|
|
Power
|
|
|
Power Supply
|
DC 12V/5A
|
|
Operating System
|
|
|
OS
|
Support Windows XP/Windows 7/ Linux（optional）
|
