品牌:微展
型号:J002-WD3I62110
起订:1台
发货:3天内
发送询价

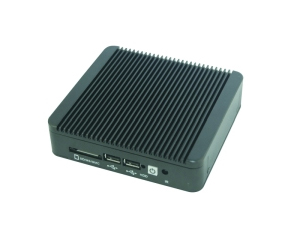

多媒体数字标牌BOX采用最新英特尔®NM10芯片组 + Cedar view™ N2800 CPU, 带集成显卡，带HDMI、LAN、SD、USB、IR、Audio接口，支持同/异步双显，高清网络播放。BOX机器性能高，无风扇，又小巧，主要应用在多媒体信息平台，网络广告机，数字标牌，广告一体机，金融信息发布系统，地铁广告机，网络监控系统等等。
|
System
|
|
|
Processor
|
Intel ® Cedar view™ N2800,2C/4T, 1.86GHz, 1MB
|
|
Chipset
|
Intel® NM10
|
|
GPU
|
SGX545 (integrated, support 1080P)
|
|
Memory
|
2GB SO-DIMM DDR3 1066 MHz memory
|
|
Storage
|
|
|
MSATA
|
SSD 32G
|
|
I/O Interface
|
|
|
USB
|
4 x USB2.0
|
|
IR
|
1 x IR Receiver
|
|
Cardreader
|
1 x Cardreader support SD/SDHC/MMC/MS
|
|
Power button
|
1 x POWER with LED （red）
|
|
LED
|
1 x LED for HDD/Cardreader （Green）
|
|
Audio Jack
|
1 x Mic-in / 1 x Line-out
|
|
DC Jack
|
1 x DC JACK
|
|
WIFI Antenna
|
1 x WIFI Antenna
|
|
Display
|
|
|
Display
|
1 x HDMI
|
|
Network Device
|
|
|
Local Lan
|
1x10M/100M/1000M LAN，RJ45 connector
|
|
WIFI
|
1 x WIFI Module support 802.11b/g/n （USB WIFI）
|
|
Mechanical and Environmental
|
|
|
Dimensions
|
135mm (L) x 128mm (W) x 34mm (H)
|
|
Reliability
|
MTBF≥50000h; MTTR≤0.5h
|
|
Operating Temperature
|
0℃~40℃
|
|
Storage Temperature
|
-20℃~70℃
|
|
Operating Humidity
|
5% ~ 90% (non-condensing)
|
|
Power
|
|
|
Power Supply
|
DC 12V/5A
|
|
Operating System
|
|
|
OS
|
Support Windows XP/Windows 7/ Linux（optional）
|
