品牌:微展
型号:J004-WD1IB4110
起订:1台
发货:3天内
发送询价

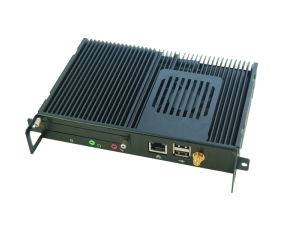

多媒体数字标牌播放盒采用英特尔® HM65芯片组，Sandy Bridge Core™ i3-2330M CPU，4G内存、320G硬盘，集成显卡，带LAN、USB、Audio、WIFI天线、标准80pin接口，高清网络播放。高性能I3多媒体播盒主要应用在多媒体信息平台，网络广告机，数字标牌，广告一体机，金融信息发布系统，地铁广告机，网络监控系统等等。
|
System
|
|
|
Processor
|
Intel ® Sandy Bridge Core™ i3-2330M 2.2GHz
|
|
Chipset
|
Intel® HM65
|
|
Memory
|
Up to 8GB SO-DIMM DDR31333 MHz, Standard: 4GB
|
|
Expansion Interface
|
1 x 80 Pin Port
|
|
Storage
|
|
|
Serial ATA
|
2.5〞5400rpm 320G
|
|
I/O Interface
|
|
|
USB
|
2 x USB2.0
|
|
WIFI Antenna
|
1 x WIFI Antenna
|
|
Audio
|
1 x Mic-in / 1 x Line-out
|
|
Display
|
|
|
HDMI
|
Through OPS interface (80 pin connector) output HDMI
|
|
Ethernet
|
|
|
Local Lan
|
1x10M/100M/1000M LAN，RJ45 connector
|
|
WIFI
|
1 x WIFI Module support 802.11b/g/n （Mini PCIE card）
|
|
Mechanical and Environmental
|
|
|
Dimensions
|
180mm (L) x 119mm (W) x30 mm (H)
|
|
Reliability
|
MTBF≥50000h; MTTR≤0.5h
|
|
Operating Temperature
|
0℃~40℃
|
|
Storage Temperature
|
-20℃~70℃
|
|
Operating Humidity
|
5% ~ 90% (non-condensing)
|
|
Power
|
|
|
Power Supply
|
DC 12V /5A， through OPS interface (80 pin connector)
|
|
Operating System
|
|
|
OS
|
Support Windows XP/Windows 7/ Linux（optional）
|
