品牌:HOUG
型号:SMD3225
规格:3.2*2.5*10.5
起订:1000PCS
供应:250000PCS
发货:3天内
立即购买
| FEATURE | ||||||||

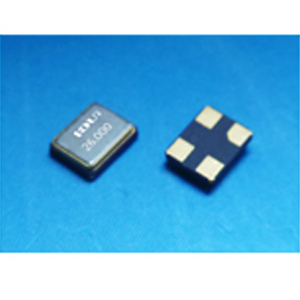

| 1.Typical 3.2*2.5*10.5mm ceramic SMD package. | ||||||||
| 2.Tight symmetry(45 to 55%)available. | ||||||||
| 3.Packing:Tape & Reel,1000/2000/3000/5000 pcs per Reel. | ||||||||
| FREQ.STABILITY vs.TEMP.RANGE | ||||||||
| Temp.(℃) ppm | C:±20 | D:±25 | G:±50 | |||||
| I | -10～+60 | ○ | ○ | ○ | ||||
| C | -20～+70 | △ | ○ | ○ | ||||
| L | -40～+85 | × | △ | ○ | ||||
| ○:Standard △:Available(case by case) ×:Not available | ||||||||
| ELECTRICAL SPECIFICATION | ||||||||
| Parameter | Min. | Max. | Unit | |||||
| 3.3 | 2.5 | 1.8 | 3.3 | 2.5 | 1.8 | V | ||
| Supply Voltage Variation(VDD)10% | 2.97 | 2.25 | 1.62 | 3.63 | 2.75 | 1.98 | V | |
| Frepuency Range | 0.8 | 110 | 90 | 75 | MHz | |||
| Operating Temp.Range | Refer to Ordering Information | ℃ | ||||||
| Frepuency Stability* | Refer to Ordering Information | ppm | ||||||
| VDD Sensitivity(±10%) | -2 | 2 | ppm | |||||
| Supply Current | mA | |||||||
| 0.8MHz≦Fo﹤20MHz | － | 10 | 8 | 6 | ||||
| 20MHz≦Fo﹤40MHz | － | 15 | 10 | 7 | ||||
| 40MHz≦Fo﹤75MHz | － | 15 | 10 | 10 | ||||
| 75MHz≦Fo≦90MHz | － | 20 | 15 | － | ||||
| 9MHz﹤Fo | － | 25 | － | － | ||||
| Transition Time:Rise/Fall Time* | － | 5.0 | nSec | |||||
| Duty Cycle | 45 | 55 | % | |||||
| Output Level | ||||||||
| Output High(Logic"1") | 90%VDD | － | V | |||||
| Output Low(Logic"0") | － | 10%VDD | ||||||
| Start Time | － | 8 | mSec | |||||
| Tri-State(Input to Pin 1) | ||||||||
| Output Active | 0.7 | － | V | |||||
| Output in High lmpedance State | － | 0.3 | ||||||
| Absolute Clock Period Jitter | － | 100 | pSec | |||||
| Standby Current | － | 10 | μA | |||||
| Storage Temp.Range | -55 | 125 | ℃ | |||||
| *Inclusive of calibration @25℃,operating temperature range,input voltage variation,load variation,aging,shock,and vibration. | ||||||||
| +Trabsutuib tunes are measured between 10% and 90% of VDD,with an output load of 15pF. | ||||||||
