品牌:HOUG

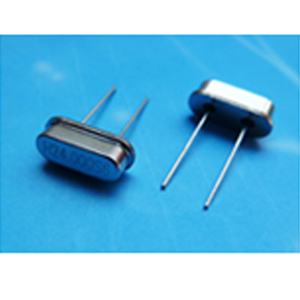

型号:HC-49/S
规格:11.1*4.68*2.5
起订:1000PCS
供应:260000PCS
发货:3天内
立即购买
| FEATURE | ||||||
| XO/XI | ||||||
| ■XO Typical 11.1*4.68*2.5 mm standard footprint. | ||||||
| ■XL Typical 11.1*4.68*3.51 mm standard footprint. | ||||||
| ■Low cost. | ||||||
| ■Low profile for close PCB stacking. | ||||||
| ■Aging:±5ppm/year. | ||||||
| ■Packing:Plastic bag 200/500 pcs or Ammopack 1000 pcs(800 pcs). | ||||||
| XP/XJ | ||||||
| ■XP Typical 13.0*4.85*3.15 mm metal can SMD package. | ||||||
| ■XJ Typical 13.0*4.85*4.2 mm metal can SMD pcakage. | ||||||
| ■24mm width Tape & Reel package for automatic assembly. | ||||||
| ■Aging:±5ppm/year. | ||||||
| ■Packing:Tape & Reel,standard 1000 pcs per Reel. | ||||||
| EQULVALENT SERLES RESISTANCE(ESR) | ||||||
| TYPE FREQUENCY | MODE | E.S.R | ||||
| Freq.≦4MHz | A1 | 140Ω | ||||
| 4MHz﹤Freq.﹤5MHz | A1 | 120Ω | ||||
| 5MHz≦Freq.﹤6MHz | A1 | 80Ω | ||||
| 6MHz≦Freq.﹤7MHz | A1 | 70Ω | ||||
| 7MHz≦Freq.﹤9MHz | A1 | 45Ω | ||||
| 9MHz≦Freq.﹤13MHz | A1 | 40Ω | ||||
| 13MHz≦Freq.﹤16MHz | A1 | 35Ω | ||||
| 16MHz≦Freq.﹤20MHz | A1 | 30Ω | ||||
| 20.00MHz≦Freq.≦24MHz | A1 | 25Ω | ||||
| 24MHz≦Freq.﹤32MHz | A3 | 120Ω | ||||
| 32MHz≦Freq.≦80MHz | A3 | 80Ω | ||||
| A1:AT cut fundamental | ||||||
| A3:AT Third Overtone | ||||||
| FREQ.STABILITY vs.LOAD CAPACITANCE | ||||||
| Load Capacitance ppm | A:±5 | B:±10 | P:±15 | C:±20 | E:±30 | |
| A | 8pF | × | × | △ | ○ | ○ |
| C | 10pF | × | × | △ | ○ | ○ |
| D | 12pF | × | △ | ○ | ○ | ○ |
| F | 16pF | × | △ | ○ | ○ | ○ |
| S | Series | △ | ○ | ○ | ○ | ○ |
| ○:Standard △:Available(case by case) ×:Not available | ||||||
