品牌:HOUG
型号:SMD5032
规格:5.0*3.2*1.15
起订:1000PCS
供应:210000PCS
发货:3天内
立即购买
| FEATURE | ||||||||||||

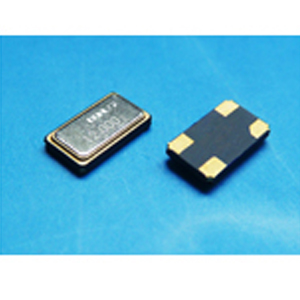

| 1.Typical 5.0*3.2*1.15mm ceramic SMD package. | ||||||||||||
| 2.±10ppm over -20℃ to +70℃,±20ppm over -40℃ to +85℃ Including 10years Aging. | ||||||||||||
| 3.Ideal for Wireless LAN Hot Spot applications at 40 MHz. | ||||||||||||
| 4.Tight symmetry(45 to 55%)available. | ||||||||||||
| 5.Packing:Tape & Reel,1000/2000/3000/5000 pcs per Reel. | ||||||||||||
| FREQ.STABILITY vs.TEMP.RANGE | ||||||||||||
|
B:±10 | C:±20 | ||||||||||
| B | 0～+50 | ○ | ○ | |||||||||
| I | -10～+60 | ○ | ○ | |||||||||
| C | -20～+70 | ○ | ○ | |||||||||
| L | -40～+85 | × | ○ | |||||||||
| ○:Standard ×:Not available | ||||||||||||
| ELECTRICAL SPECIFICATION | ||||||||||||
| Parameter | Min. | Max. | Unit | |||||||||
| 5.0 | 3.3 | 5.0 | 3.3 | V | ||||||||
| Supply Voltage Variation(VDD)10% | 4.5 | 2.97 | 5.5 | 3.63 | V | |||||||
| Frepuency Range | 1.5 | 55 | MHz | |||||||||
| Operating Temp.Range | Refer to Ordering Information | ℃ | ||||||||||
| Frepuency Stability* | Refer to Ordering Information | ppm | ||||||||||
| Supply Current | ||||||||||||
| 1.5MHz≦Fo﹤20MHz | － | 15 | 10 | mA | ||||||||
| 20MHz≦Fo﹤40MHz | － | 20 | 15 | |||||||||
| 40MHz≦Fo≦55MHz | － | 30 | 22 | |||||||||
| Output Level(CMOS) | ||||||||||||
| Output High(Logic"1") | 90%VDD | － | V | |||||||||
| Output Low(Logic"0") | － | 10%VDD | ||||||||||
| Transition Time:Rise/Fall Time* | 6 | nSec | ||||||||||
| Start Time | 8 | mSec | ||||||||||
| Tri-State | ||||||||||||
| Output Active | 4.0 | 2.00 | － | V | ||||||||
| Output in High lmpedance State | － | 0.8 | 0.5 | |||||||||
| Absolute Clock Period Jitter | － | 40 | pSec | |||||||||
| Standby Current | － | 50 | μA | |||||||||
| Storage Temp.Range | -55 | 125 | ℃ | |||||||||
| *Inclusive of calibration @25℃,operating temperature range,input voltage variation,load variation,aging,shock,and vibration. | ||||||||||||
| +Trabsutuib tunes are measured between 10% and 90% of VDD,with an output load of 15pF. | ||||||||||||
